LED Lights
CoolLED pE-300 lite

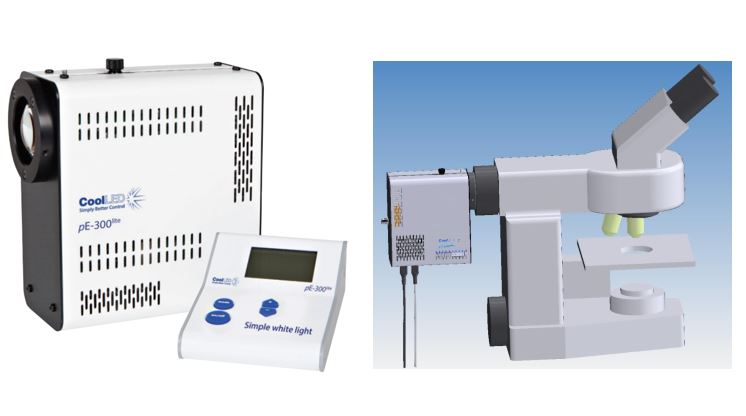

The pE-300lite is a simple white light LED illumination unit.  It provides a broad spectrum of illumination,  covering the excitation bands of common fluorescent stains.  Operation is by a remote manual control pod with instant on/off and intensity control from 0-100%.

As part of the award winning pE-300 Series, the NEW Enhanced pE-300lite now delivers DOUBLE the intensity at the microscope sample plane.  It allows adjustment of output in 1% steps, giving precise control.  The broad spectrum covers everyday fluorophores: DAPI, CFP, Aqua, FITC, TRITC, TxRed, Cy5 and many more.


The pE-300lite offers:-

Simple to Buy

Works with everyday fluorophores/stains
Affordable through lab consumables budget

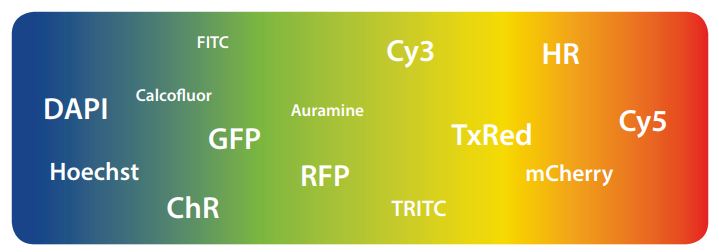

Broad spectrum - covers UV (DAPI) to Red region (Cy5)
Specify for  existing single and multi-band filter sets – no need to buy new filters
Simple to Fit
Direct fit to the microscope in seconds
Wide range of microscope adaptors – fits most microscopes
No alignment, a once only adjustment
Simple to Use
Instant on/off  - No shutters required, no warm up or cool down
Stable & repeatable – reliable and consistent results
Precise intensity control in 1% steps (0-100%) – no ND filters required
Excellent uniformity over field of view – fixed and stable, no alignment necessary
Long lifetime (25,000 operating hours)
No bulb replacement or ongoing consumables

DAPI can be excited at either 365nm or 400nm and microscopes typically have a filter set which allows one or other of these wavelengths to be transmitted. To accommodate this, the pE-300lite can be specified in one of two waveband configurations to match with the user’s existing filter sets within the microscope. A microscope which is populated with a number ofsingle band (“SB”) filter sets will typically have DAPI excitation at 365nm and a microscope with multi-band (“MB”) filter(s) has excitation at 400nm. The user can specify the configuration which is appropriate for their microscope.

Power requirements
100-240V a.c. 50/60Hz, 1.4A

Power consumption
pE-300 Series, Light Source, At the wall (includes power supply unit consumption)
Standby, 2W, 3.3W
Full white intensity, 46W, 56.4W

Dimensions
pE-300lite Light Source: 77mm(w) x 186mm(d) x 162(h) - Weight 1.4kg
pE-300lite Control Pod: 88mm(w) x 125mm(d) x 37mm(h) - Weight 0.32kg
pE-300lite Power Supply: 167mm(w) x 67m(d) x 35mm(h) – Weight 0.62kg
pE-Universal Collimator: 44mm(w) x 86mm(d) x 44mm(h) – Weight 0.17kg

Environment & Safety
Mercury-free
Energy Efficient: 80% less power
Long lifetime (25,000 operating hours)
No bulb replacements
Reduced risk of eye damage
Quiet operation
No special disposal regulations or issues

Warranty
36 months


The award winning pE-300 Series is a range of LED Illumination Systems for Fluorescence, Optogenetics, Electrophysiology and high speed microscopy applications. It comprises 3 systems providing a solution that covers a range of everyday fluorescence microscopy; from the simple pE-300lite through the classic pE-300white to the highly controllable pE-300ultra.

CoolLED's pE-300 Series was the 2017 winner of the "Go Beyond Award" in the “Products” category for “Excellence in sustainability in laboratory and other high technology facilities”  The International Institute for Sustainable Laboratories (I2SL) runs a unique awards program honouring organisations, individuals, products,and projects that are advancing sustainable, high-performance facilities.

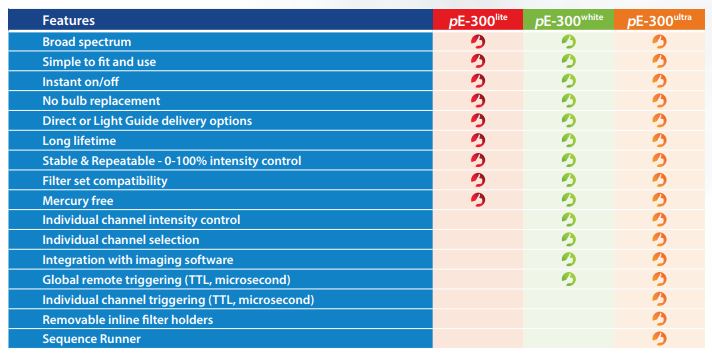

The table below is a quick reference guide to the features offered by the pE-300 Series systems
DAPI can be excited at either 365nm or 400nm and microscopes typically have a filter set which allows one or other of these wavelengths to be transmitted. To accommodate this, the pE-300lite can be specified in one of two waveband configurations to match with the user’s existing filter sets within the microscope. A microscope which is populated with a number ofsingle band (“SB”) filter sets will typically have DAPI excitation at 365nm and a microscope with multi-band (“MB”) filter(s) has excitation at 400nm. The user can specify the configuration which is appropriate for their microscope.

Power requirements
100-240V a.c. 50/60Hz, 1.4A

Power consumption
pE-300 Series, Light Source, At the wall (includes power supply unit consumption)
Standby, 2W, 3.3W
Full white intensity, 46W, 56.4W

Dimensions
pE-300lite Light Source: 77mm(w) x 186mm(d) x 162(h) - Weight 1.4kg
pE-300lite Control Pod: 88mm(w) x 125mm(d) x 37mm(h) - Weight 0.32kg
pE-300lite Power Supply: 167mm(w) x 67m(d) x 35mm(h) – Weight 0.62kg
pE-Universal Collimator: 44mm(w) x 86mm(d) x 44mm(h) – Weight 0.17kg

Environment & Safety
Mercury-free
Energy Efficient: 80% less power
Long lifetime (25,000 operating hours)
No bulb replacements
Reduced risk of eye damage
Quiet operation
No special disposal regulations or issues

Warranty
36 months


The award winning pE-300 Series is a range of LED Illumination Systems for Fluorescence, Optogenetics, Electrophysiology and high speed microscopy applications. It comprises 3 systems providing a solution that covers a range of everyday fluorescence microscopy; from the simple pE-300lite through the classic pE-300white to the highly controllable pE-300ultra.

CoolLED's pE-300 Series was the 2017 winner of the "Go Beyond Award" in the “Products” category for “Excellence in sustainability in laboratory and other high technology facilities”  The International Institute for Sustainable Laboratories (I2SL) runs a unique awards program honouring organisations, individuals, products,and projects that are advancing sustainable, high-performance facilities.

The table below is a quick reference guide to the features offered by the pE-300 Series systems
